oil-free

KCT60
Clean power, built to last

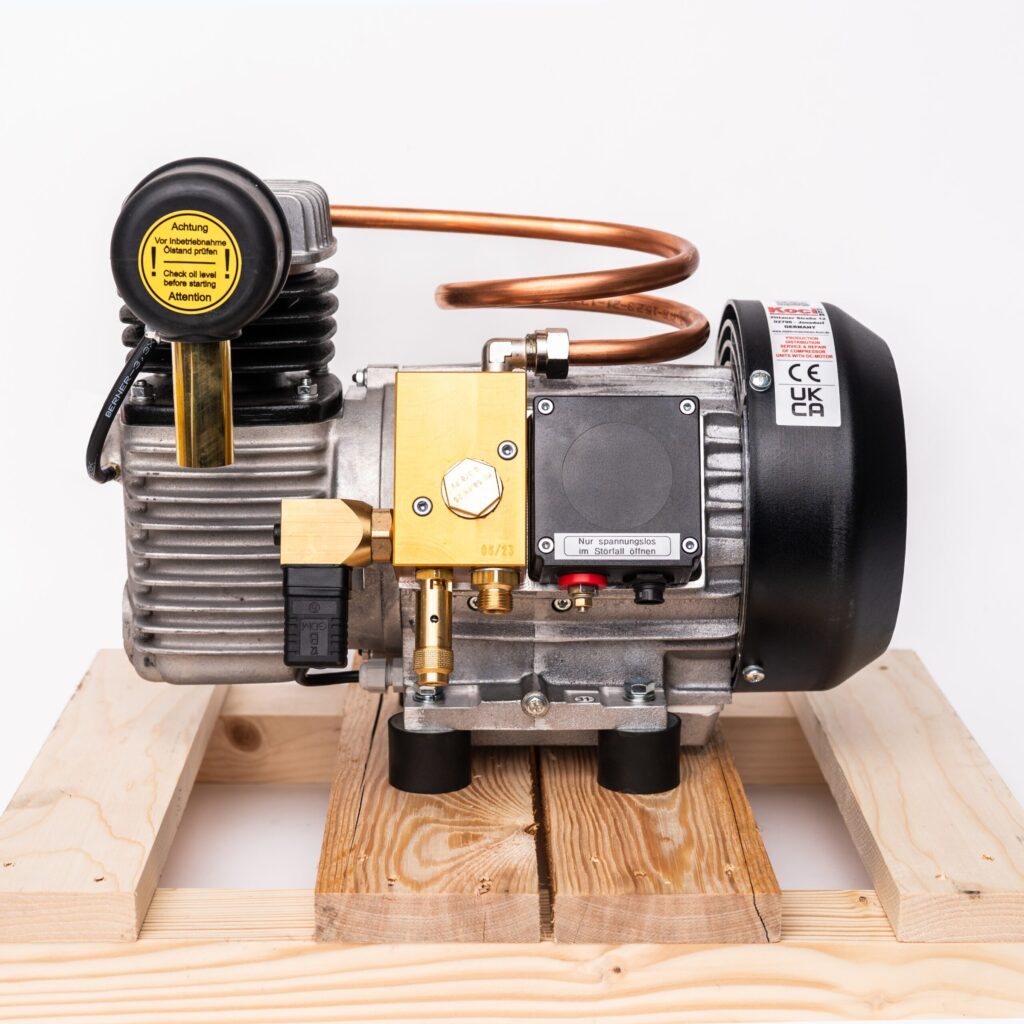

Our compressor units set the standard for efficiency. The intelligent monobloc design combines an oil-free single-cylinder compressor with a powerful DC drive in an exceptionally compact unit. The result: maximum performance in minimum space – clean and low-maintenance.

Enquire now

35 l/min

Free air delivery

IP 66

Protection rating

7 bar

max. operating pressure

84 dB

Noise level

Details

Intelligent engineering: highlights of our oil-free compressors

Three perfectly matched sections ensure smooth operation:

Compressor block made by KAESER Kompressoren – durable and powerful
Control block as the pneumatic control centre, incorporating
- Solenoid unloading valve
- Non-return valve
- Pressure switch
- Safety valve
- Antifreeze system (optional)
- Silencer for exhaust air
DC motor with
- Power relay
- Interference suppression
- Thermal protection
- Undervoltage protection
- Control voltage independent of the operating voltage
- Restart delay (approx. 5 seconds)
- External indicator light informs the operator of the operating status

Too much or too little? No problem.
Start our configurator and we will prepare a tailored quotation for you.

Technical data

	Unit	24V	48V
Maximum operating pressure:	bar	7	7
Air intake capacity:	l/ min	60	60
Free air delivery at 6 bar:	l/ min	35	35
Compressor speed:	rpm	1500	1500
Motor power:	kW	0,5	0,53
Current draw:	A	24	12
Protection rating:	IP	66	66
Radio interference suppression:		yes	yes
Weight:	kg	20	20
Sound power level LWA:	dB	84	84

Documents

Operating instructions

Service & repairs

Sustainability that pays: KOCI service & long-term value

A KOCI compressor is not a disposable product, but an investment in the future. To keep your unit performing at its best for decades, we focus on consistent maintenance rather than replacement:

Maximum service life: Targeted maintenance and professional repairs significantly extend the working life of your system.
Long-term spare parts availability: Even after many years, we ensure continued availability of all original parts – giving you complete planning confidence.
Convenient collection service: We make it easy. Simply use our form: we collect your compressor from you or your partner workshop, repair it in our specialist department and return it ready for use – throughout Europe. Request collection

The result: Lower operating costs, outstanding reliability and a valuable contribution to resource efficiency.

Smart timing: maintenance without extra downtime

Maximise your fleet’s efficiency: use planned vehicle downtime or workshop visits for your KOCI compressor service. While your vehicle is being serviced, we restore your unit to peak performance – avoiding a second period of downtime.
