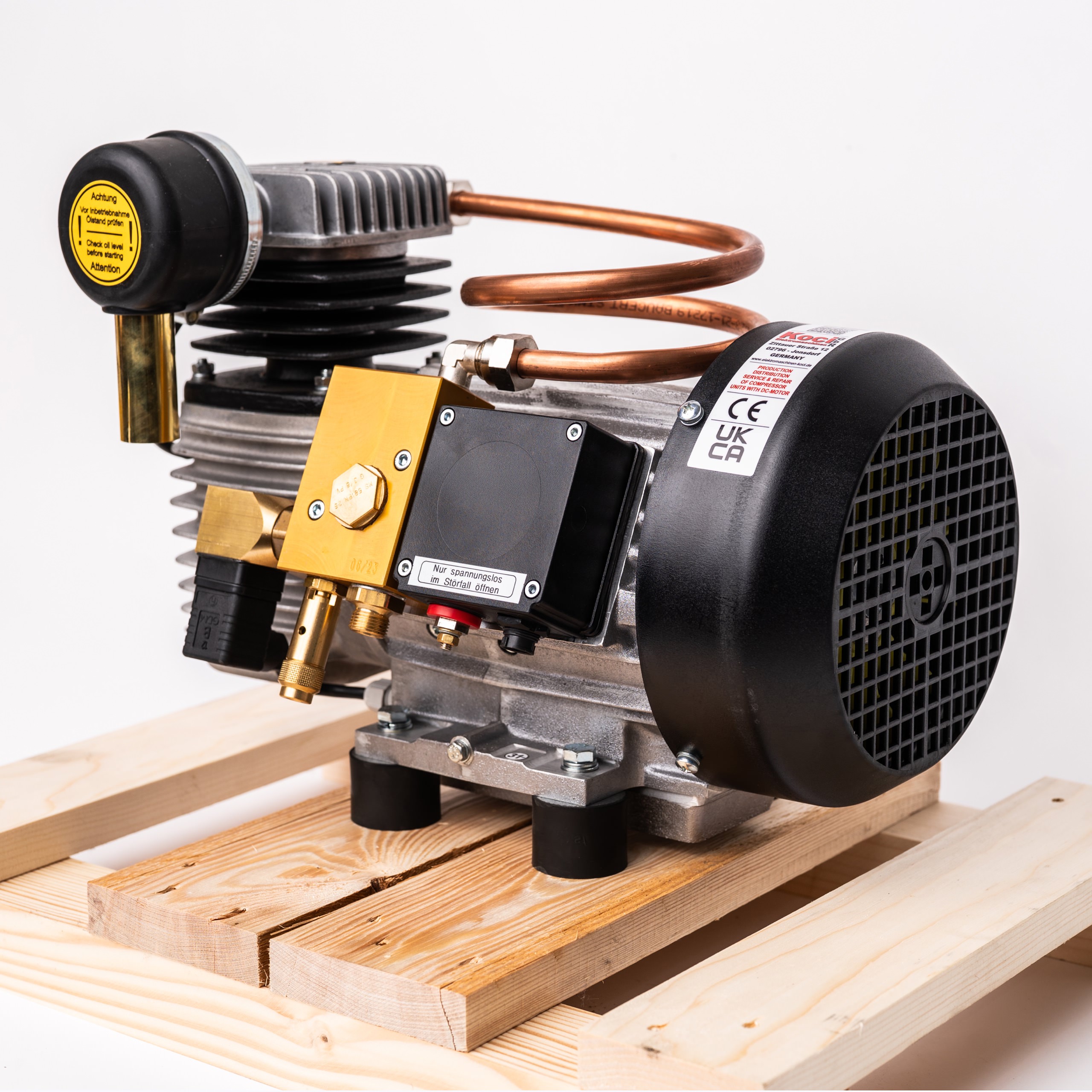

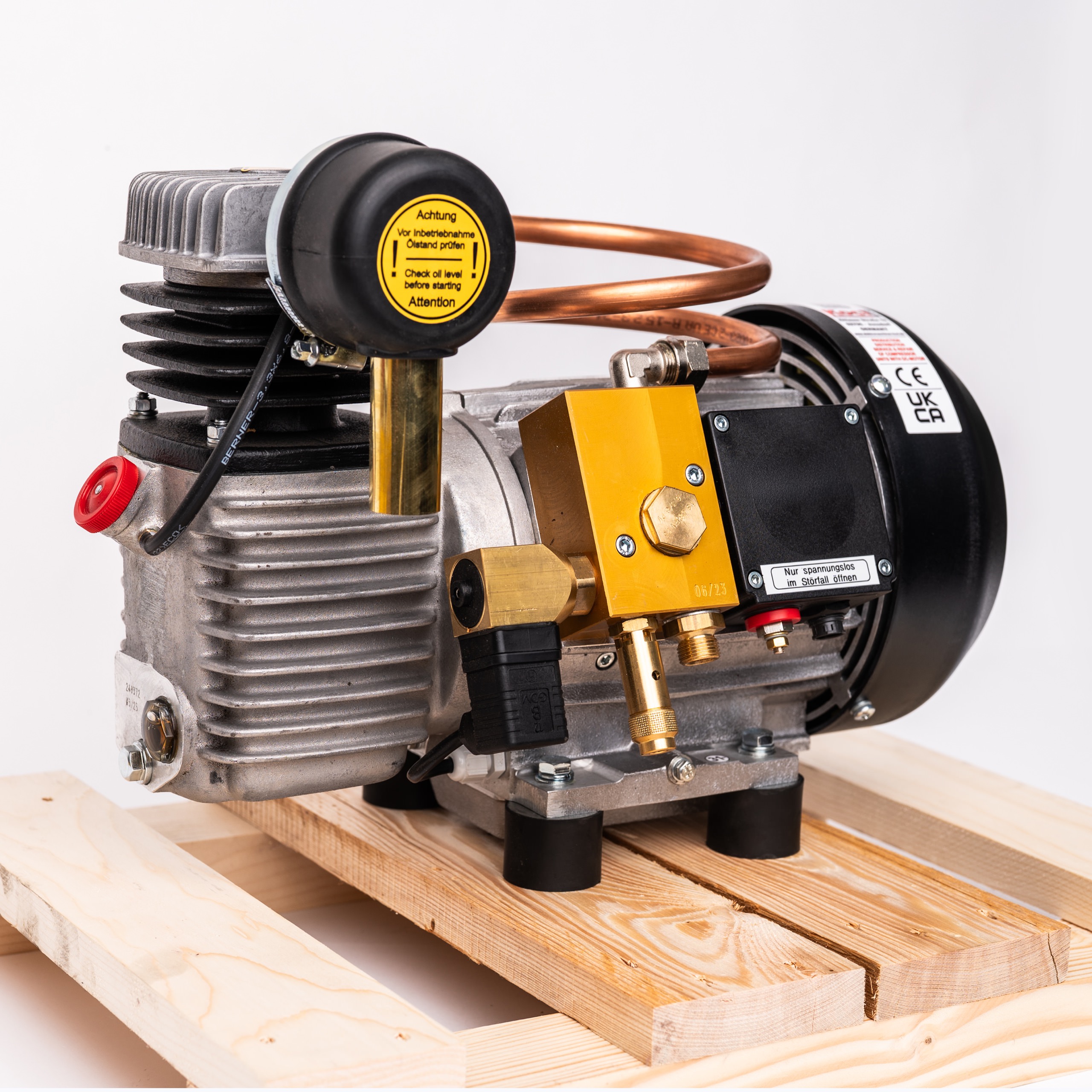

KC100
The compact powerhouse

Intelligent engineering: highlights of our standard compressors

Three perfectly matched sections ensure smooth operation:

• Compressor block made by KAESER Kompressoren – durable and powerful
• Control block as the pneumatic control centre, incorporating
  • Solenoid unloading valve
  • Non-return valve
  • Pressure switch
  • Safety valve

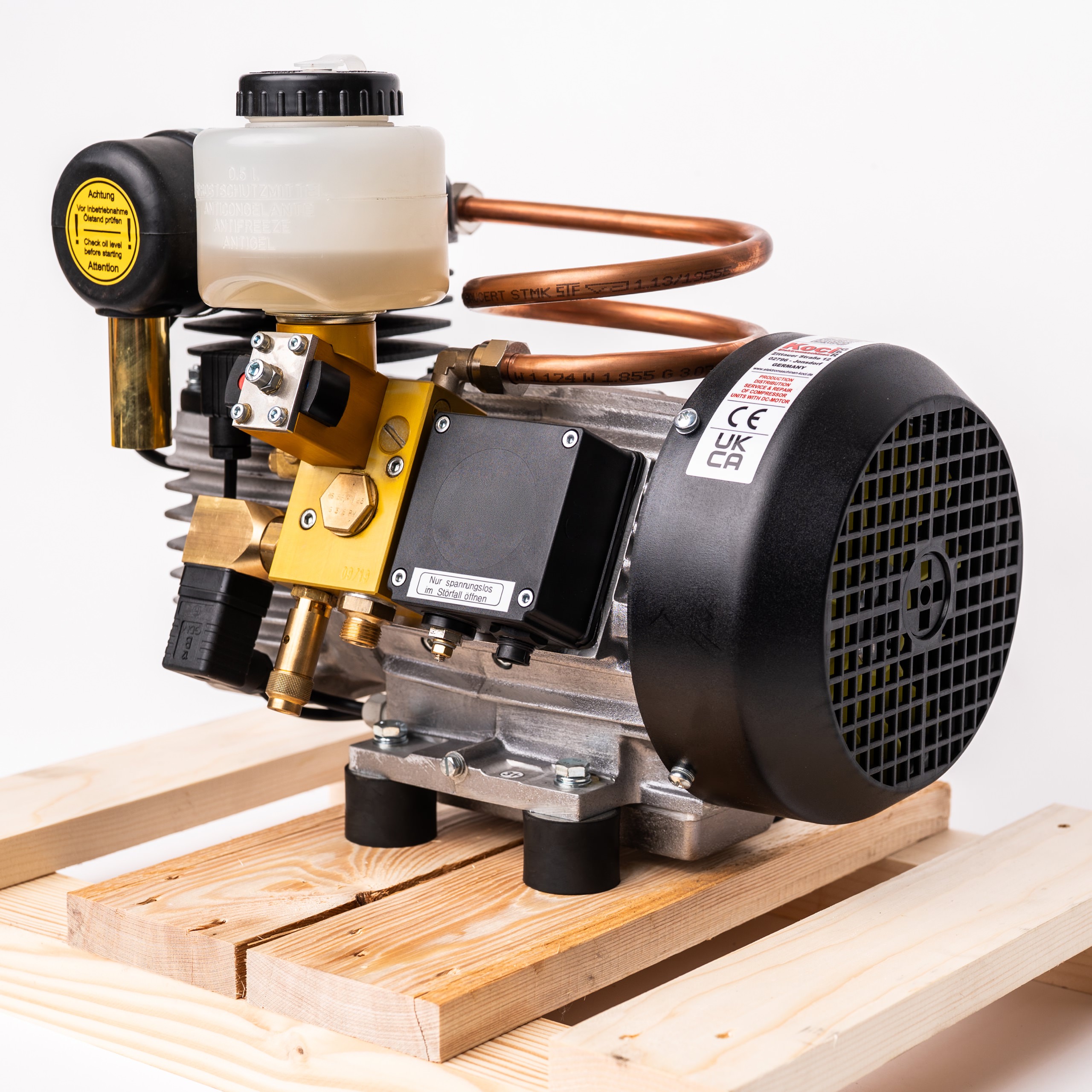

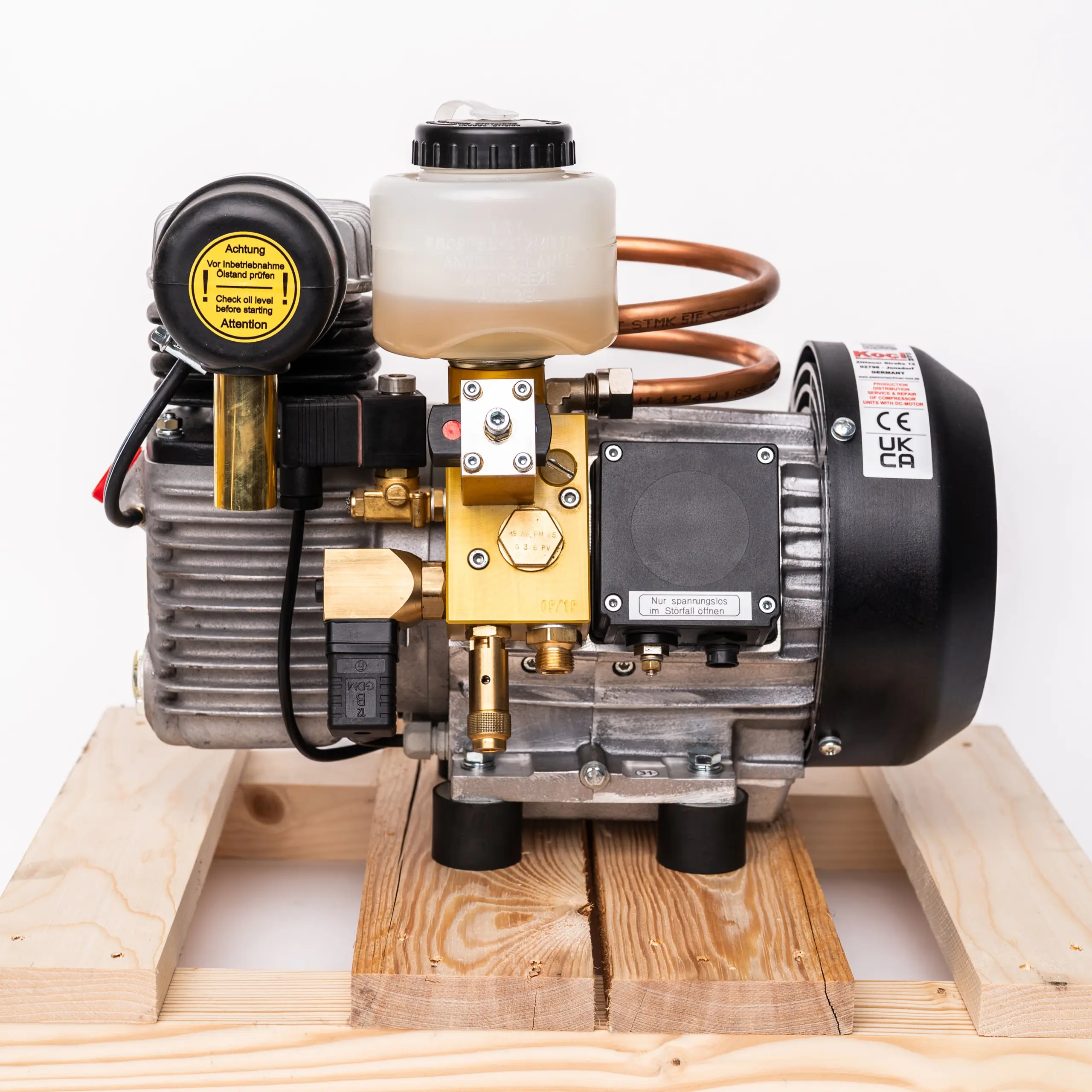

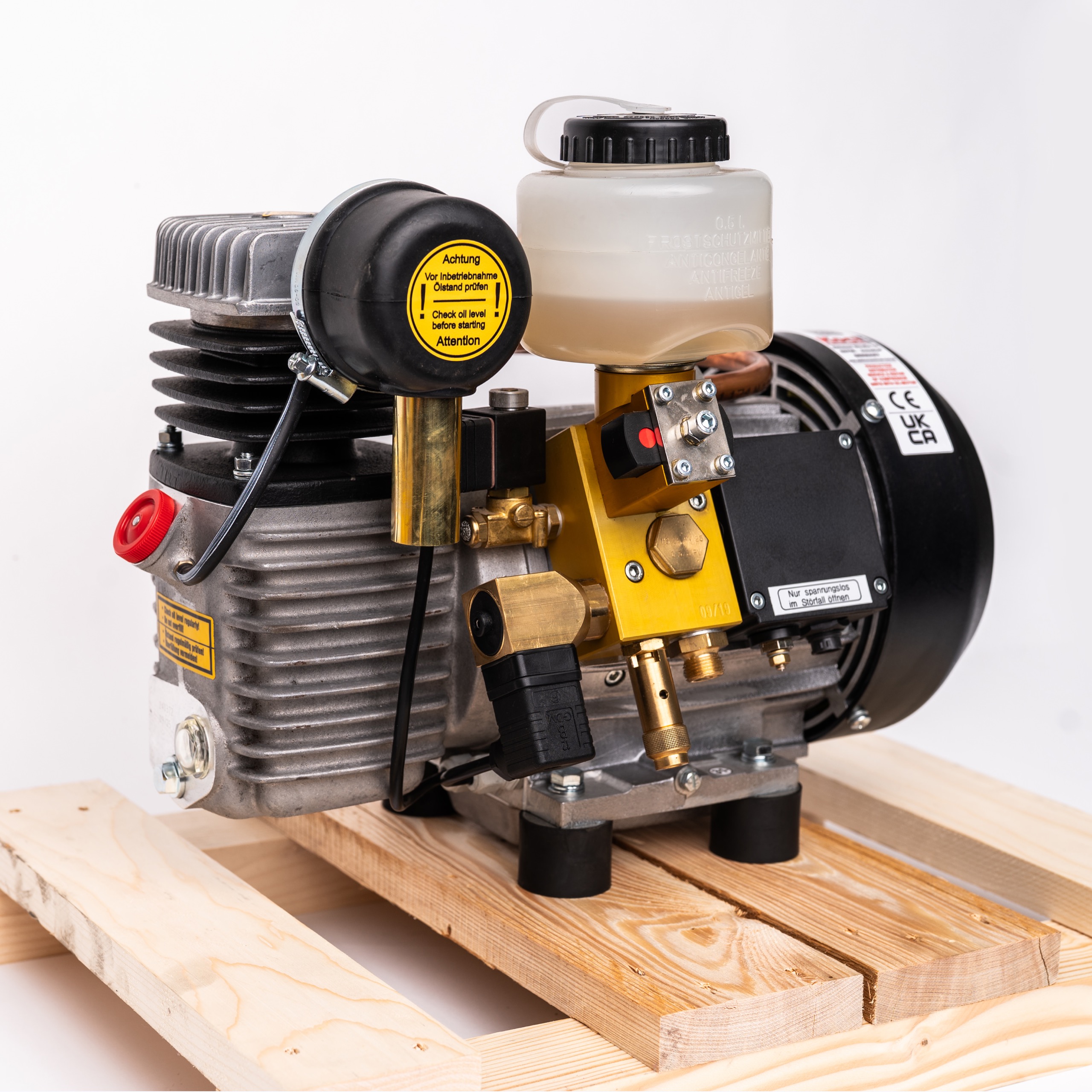

  • Antifreeze system (optional)
  • Silencer for exhaust air
• DC motor with
  • Power relay
  • Interference suppression
  • Thermal protection
  • Undervoltage protection
  • Control voltage independent of the operating voltage
  • Restart delay (approx. 5 seconds)
  • External indicator light informs the operator of the operating status

Too much or too little? No problem.
Start our configurator and we will prepare a tailored quotation for you.

	Unit	12V	24V	48V	80V	110V
Maximum operating pressure:	bar	10	10	10	10	10
Air intake capacity:	l/ min	75	75	75	75	75
Free air delivery at 6 bar:	l/ min	52	52	52	52	52
Compressor speed:	rpm	1500	1500	1500	1600	1600
Motor power:	kW	0,5	0,5	0,53	0,53	0,55
Current draw:	A	48	24	13	8	5,5
Protection rating:	IP	66	66	66	66	66
Radio interference suppression:		yes	yes	yes	yes	yes
Oil capacity (SAE 5W-30):	l	0,13	0,13	0,13	0,13	0,13
Weight:	kg	20	20	20	20	20
Sound power level LWA:	dB	84	84	84	84	84

Operating instructions

• KC100 and KC200 operating instructions – German
• KC100 and KC200 operating instructions – English
• KC100 and KC200 spare parts list (German)
• Packaging instructions (German)
• Declaration of conformity (DoC)

Sustainability that pays: KOCI service & long-term value

A KOCI compressor is not a disposable product, but an investment in the future. To keep your unit performing at its best for decades, we focus on consistent maintenance rather than replacement:

• Maximum service life: Targeted maintenance and professional repairs significantly extend the working life of your system.
• Long-term spare parts availability: Even after many years, we ensure continued availability of all original parts – giving you complete planning confidence.
• Convenient collection service: We make it easy. Simply use our form: we collect your compressor from you or your partner workshop, repair it in our specialist department and return it ready for use – throughout Europe. Request collection

The result: Lower operating costs, outstanding reliability and a valuable contribution to resource efficiency.

Smart timing: maintenance without extra downtime

Maximise your fleet’s efficiency: use planned vehicle downtime or workshop visits for your KOCI compressor service. While your vehicle is being serviced, we restore your unit to peak performance – avoiding a second period of downtime.

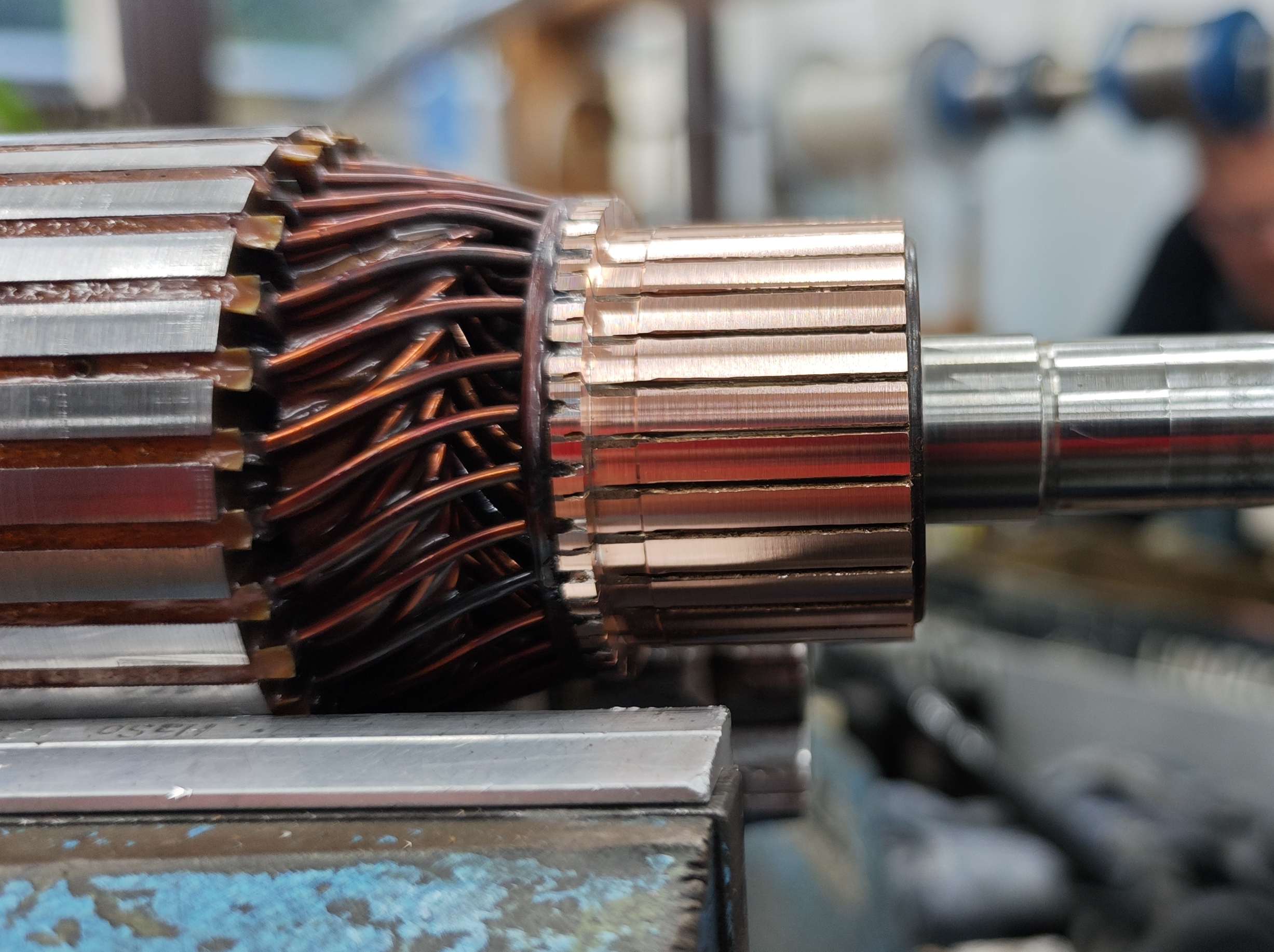

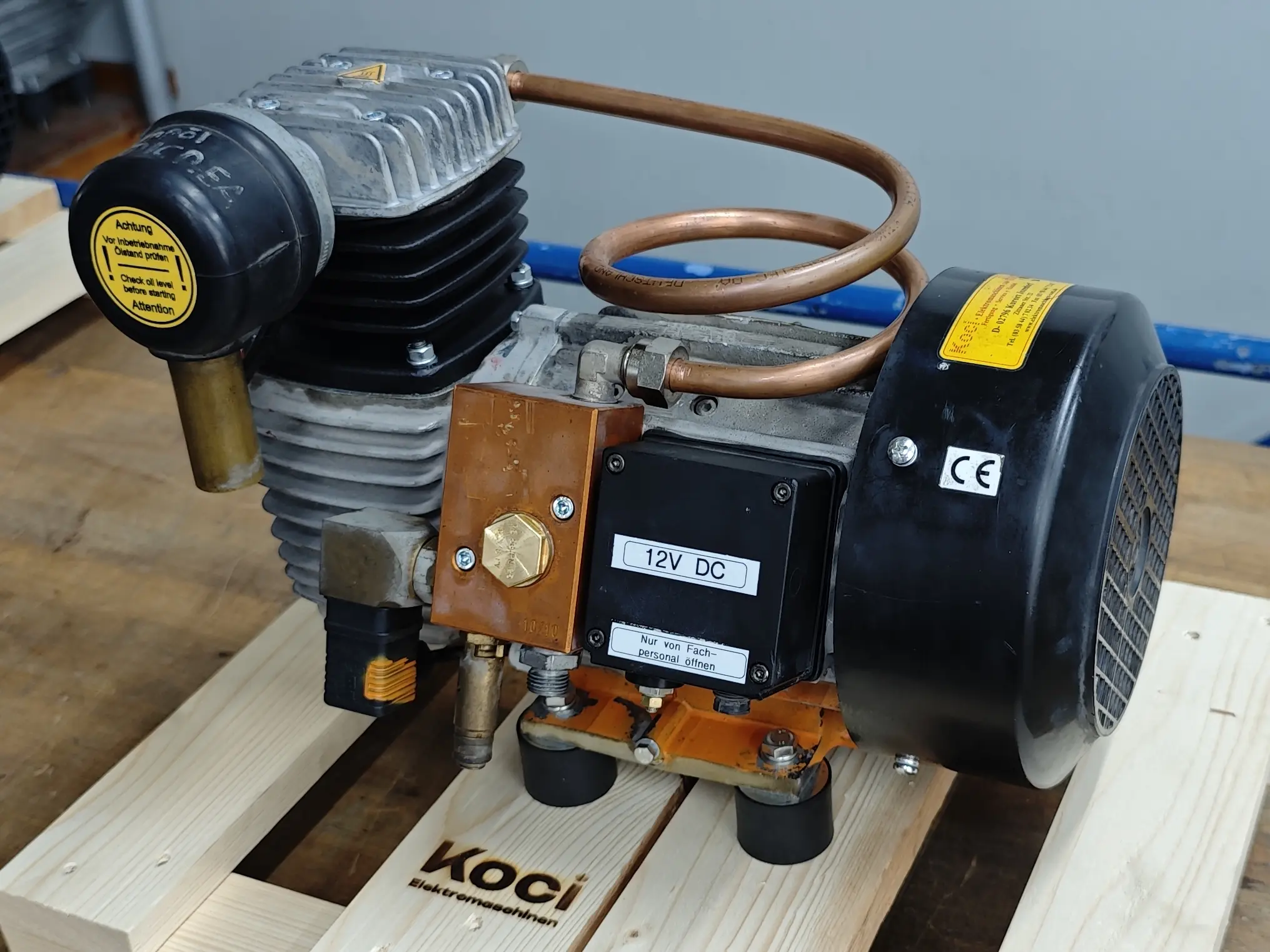

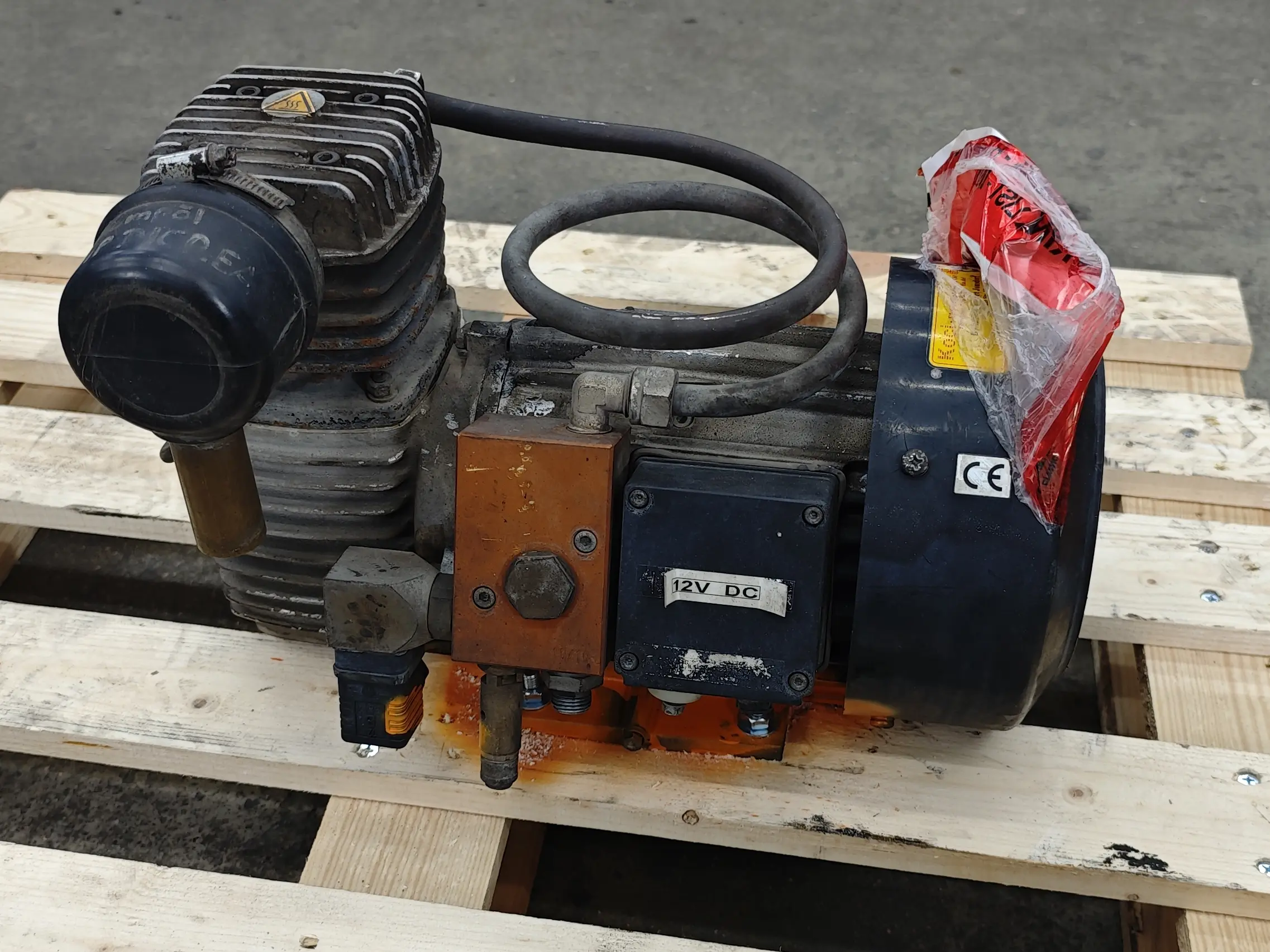

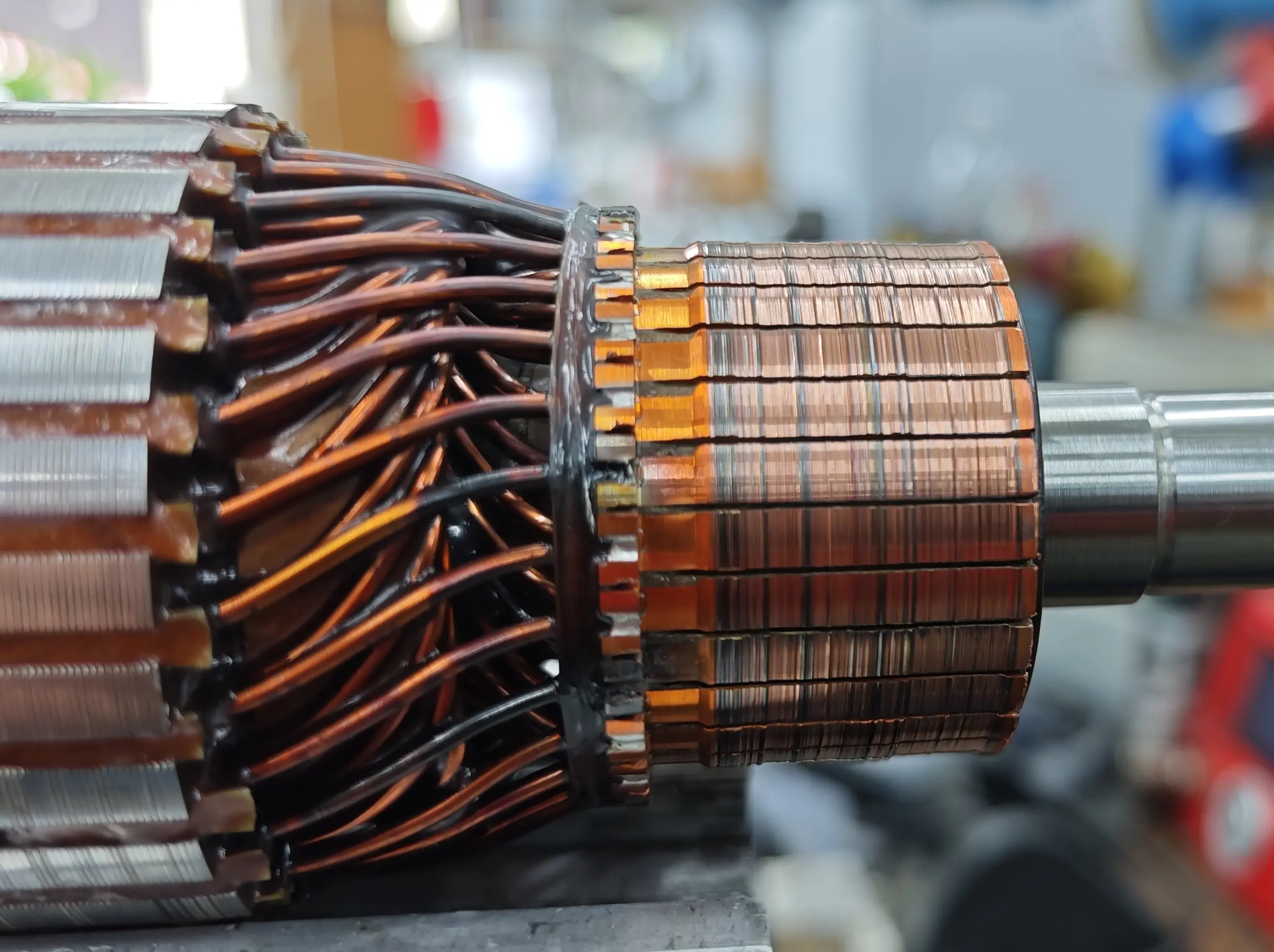

Before-and-after photos of our customers’ projects:
