DC compressors in 12V / 24V / 48V / 80V
for special-purpose vehicles and industry
Compact compressor units with integrated controls, specially developed for a reliable, long-lasting compressed air supply.
versatile
DC compressor KC100
12V/24/48V/80V/110V
Air intake capacity 75 l/min
Free air delivery 52 l/min
Power 0.5 kW
Max. operating pressure 10 bar
powerful
DC compressor KC200
12V/24/48V/80V/110V
Air intake capacity 150 l/min
Free air delivery 104 l/min
Power 1.0 kW
Max. operating pressure 10 bar
oil-free
DC compressor KCT60 (oil-free)
24/48V
Air intake capacity 60 l/min
Free air delivery 35 l/min
Power 0.5 kW
Max. operating pressure 7 bar
Custom DC compressors made in Germany
We manufacture our compressor DC motors in-house, giving us the flexibility to meet a wide range of individual requirements. Custom voltages, connections and equipment are available even for small batches. Simply use our configurator or write to us. We will be happy to offer a precisely tailored solution.

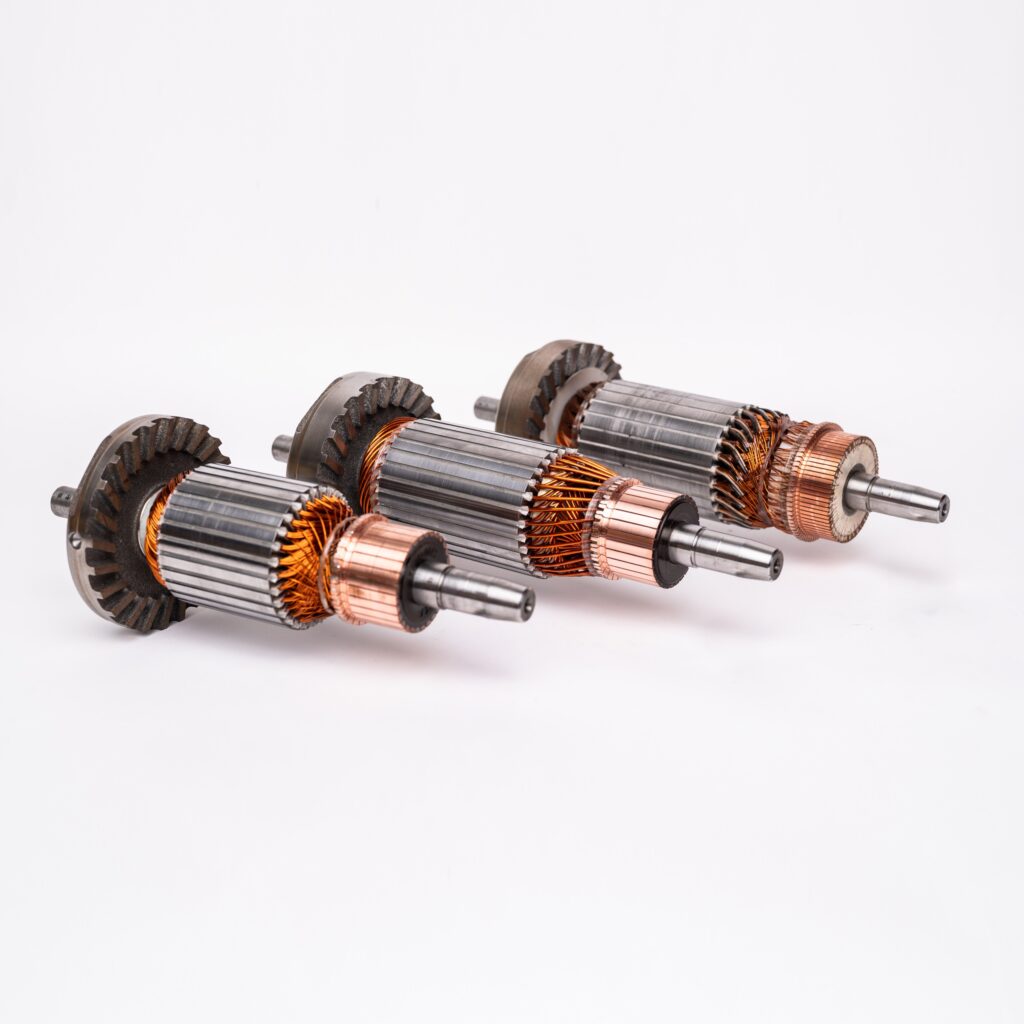

Commutator rotor with flywheel
- In-house armature winding followed by CNC machining
- Shaft from our CNC production
- Purchased components from local suppliers in Upper and Lower Lusatia

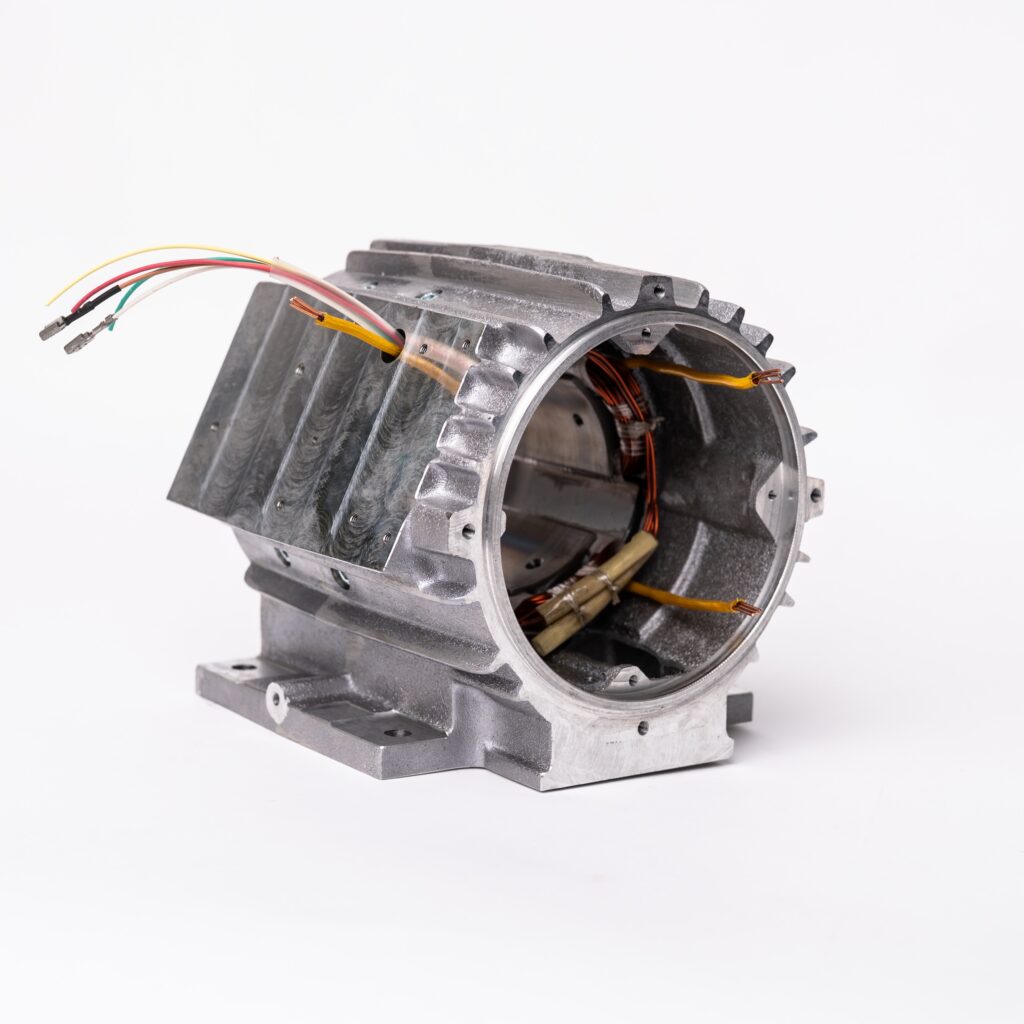

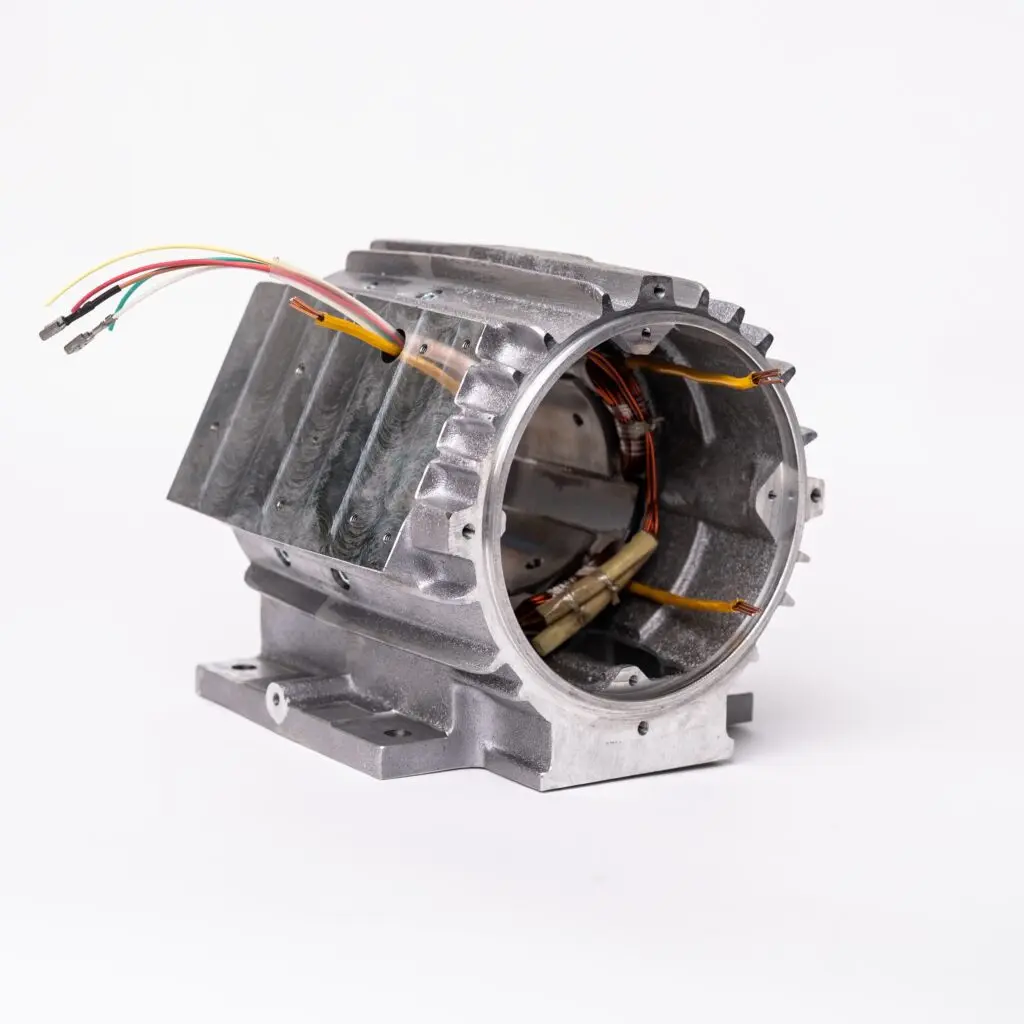

Stator with field winding
- Field winding manufacture followed by assembly
- In-house CNC machining of the blank
- Aluminium casting from a local foundry

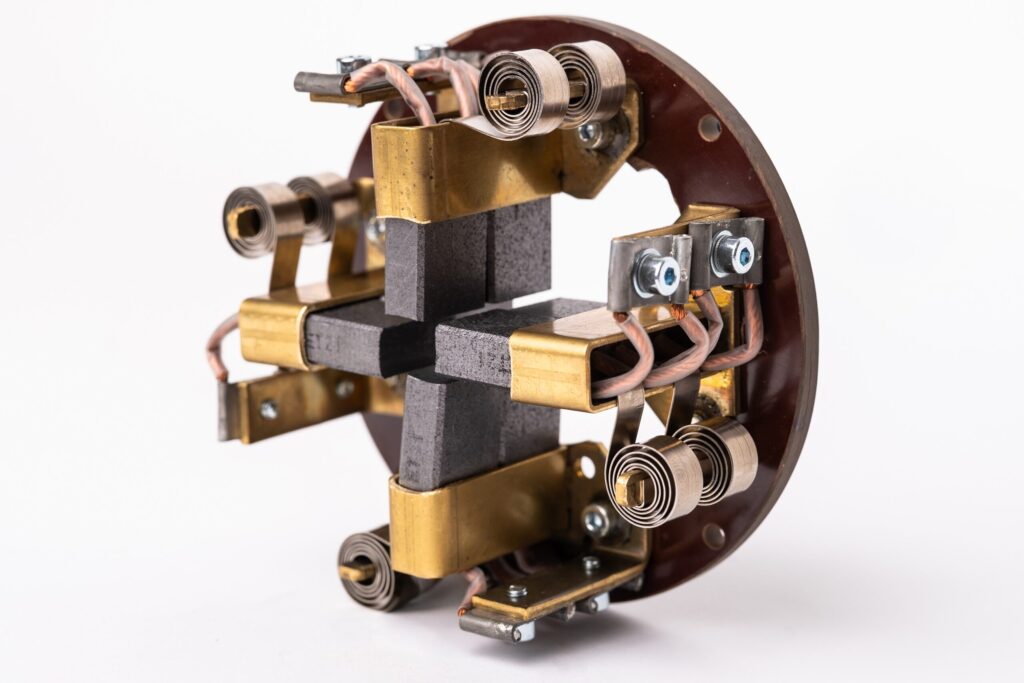

Brush holder assembly with carbon brushes
- CNC manufacture of the brush holder and assembly of the unit
- With carbon brushes from Dresden
- Brass carbon brush holders from Jena

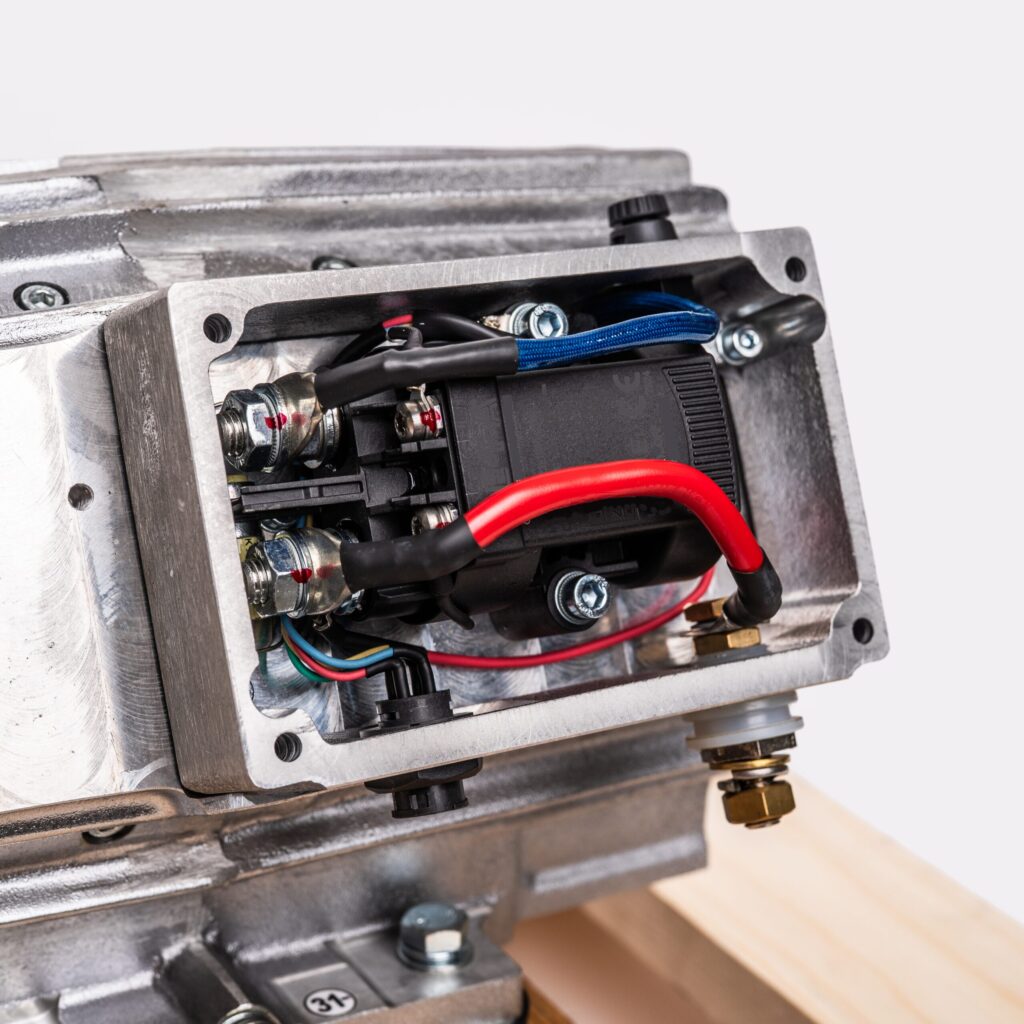

Terminal box with separate frame
- In-house assembly of electrical controls
- With high-quality components from German manufacturers
- Flexible, individually tailored connection options

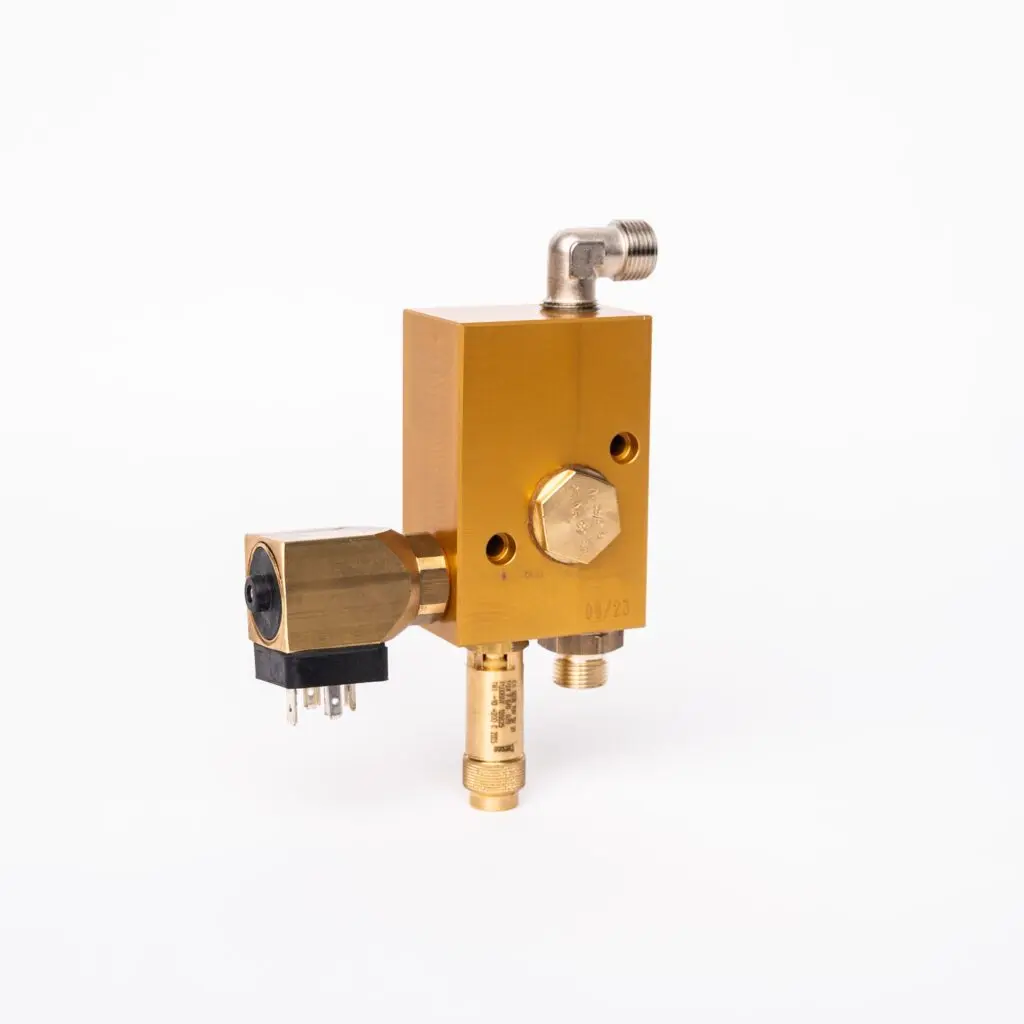

Control block with optional antifreeze pump
- In-house development, CNC machining and assembly of pneumatic controls
- Compact solution already integrated into the stator
- Purchased components from German and European manufacturers

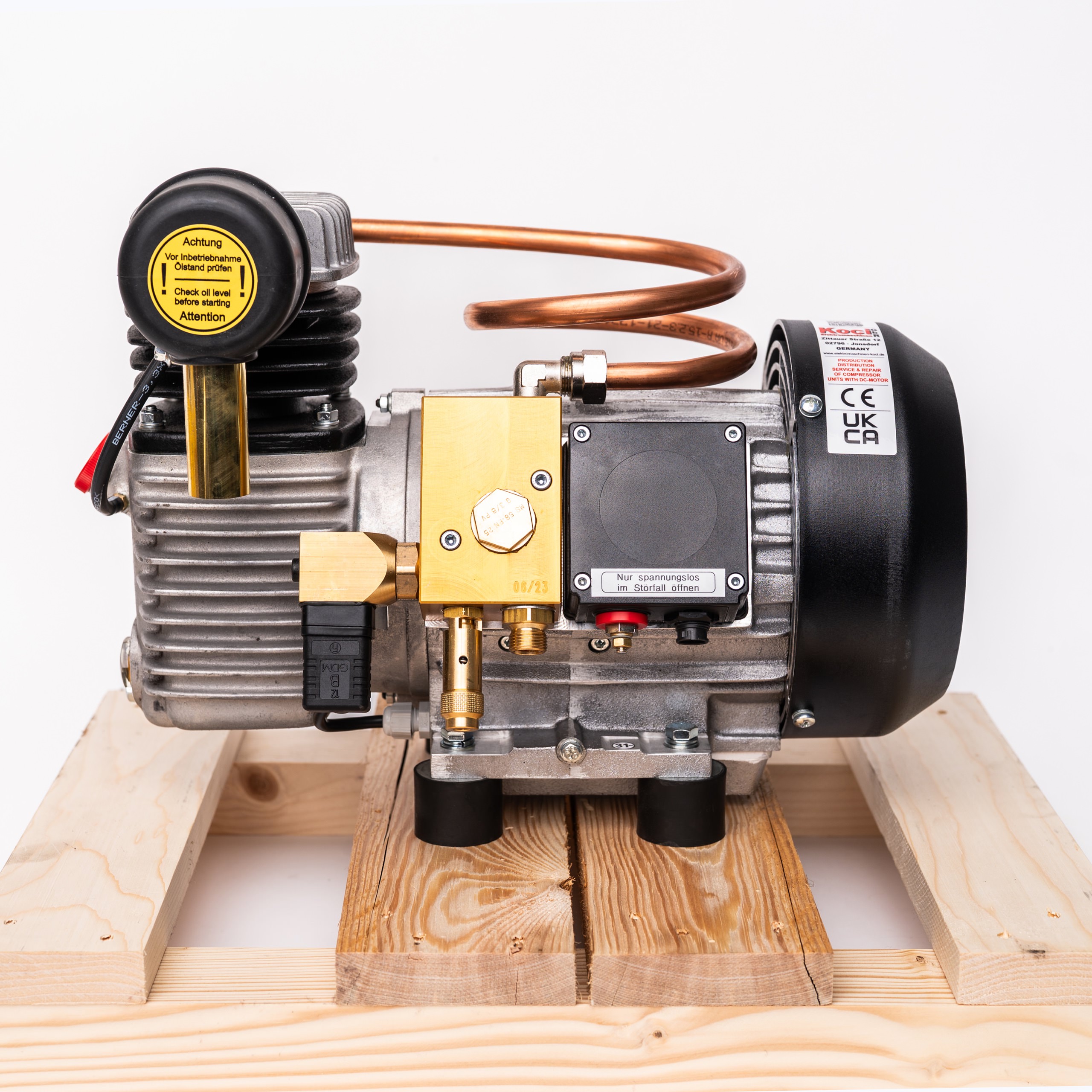

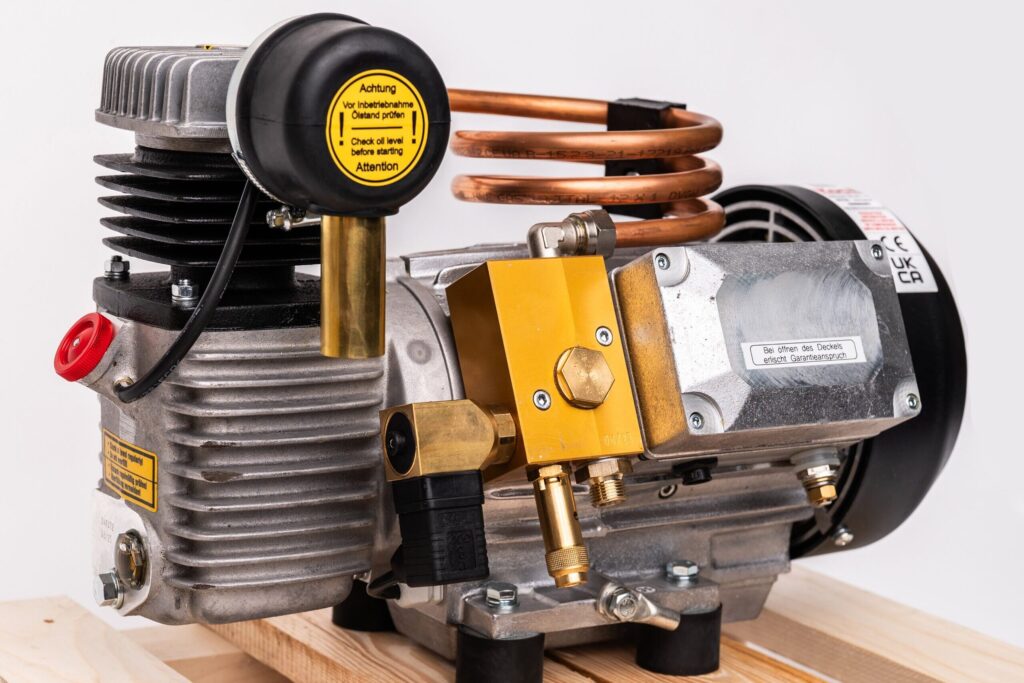

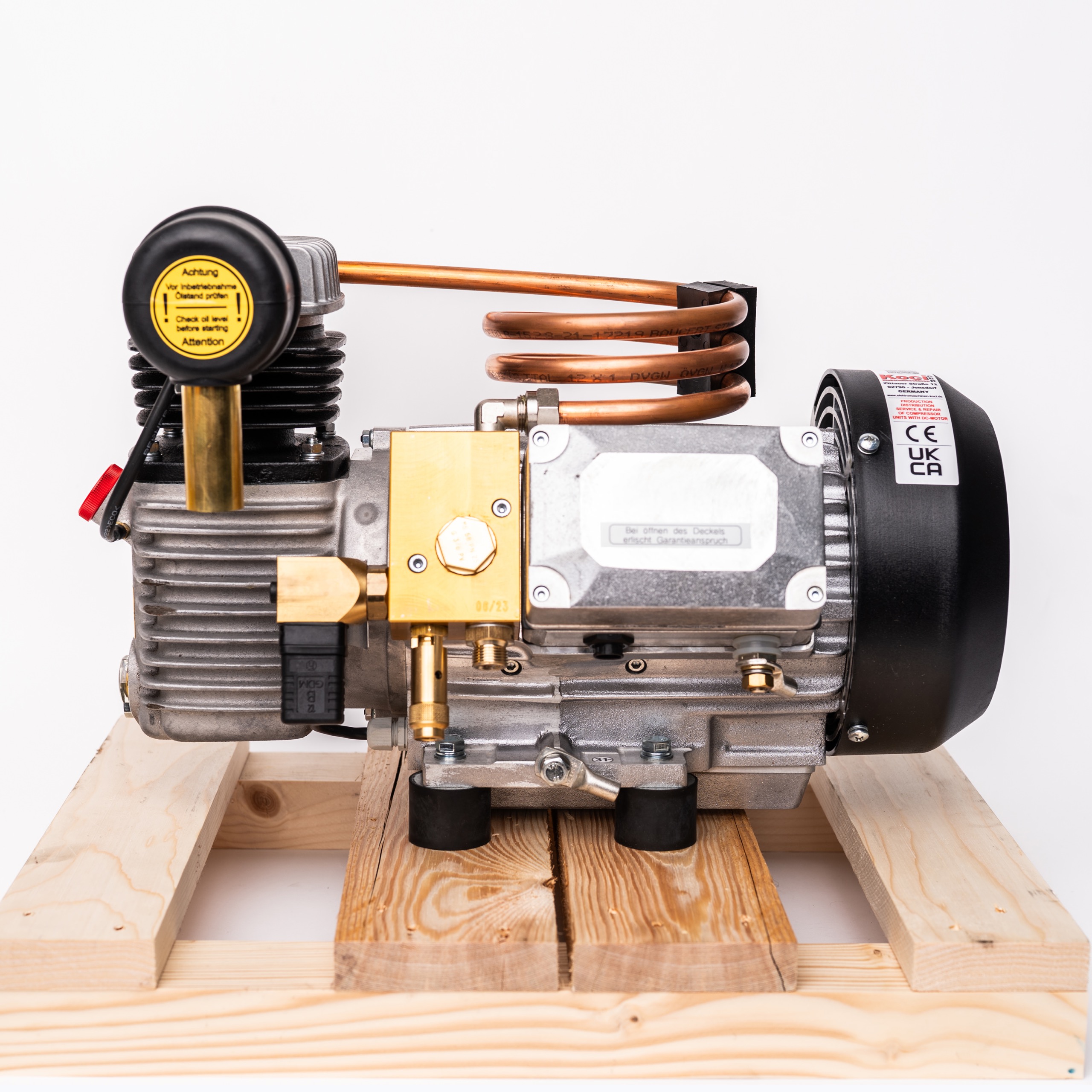

DC compressor as a complete unit
- Final assembly with compressor components from KAESER Kompressoren
- Comprehensive quality control for every compressor
Maximum power, minimum size: our compressor solutions
Stationary or mobile, our compact DC-powered units reliably deliver compressed air wherever it is needed. Designed for maximum flexibility in demanding industries:
- Mobility & transport: Vehicle manufacturing (conventional, electric and special-purpose vehicles) and boats.
- Off-road & industry: Agriculture, forestry, construction and mining.
Ready for every weather: With optional antifreeze equipment, our systems deliver full performance even in extreme sub-zero temperatures. Ideal for zero-emission zones requiring clean battery-powered operation.
High-performance engineering: compact. Reliable.Built to last.
Our compressor units set high standards for efficiency and reliability. The intelligent monobloc design combines single-cylinder power with a heavy-duty DC motor in a robust unit, built for demanding conditions.
Your benefits at a glance:
- Maximum operational reliability: Integrated undervoltage and thermal protection, plus protection against incorrect switching, safeguard your equipment.
- Ready for Extremes: With an IP66 rating , the unit is fully protected against dust and powerful water jets. An optional antifreeze system prepares it for Arctic conditions down to -20°C.
A low-maintenance powerhouse you can depend on.
Lower operating costs, outstanding reliability and a valuable contribution to resource efficiency.
A KOCI compressor is not a disposable product, but an investment in the future. To keep your unit performing at its best for decades, we focus on consistent maintenance rather than replacement:
- Maximum service life: Targeted maintenance and professional repairs significantly extend the working life of your system.
- Long-term spare parts availability: Even after many years, we ensure continued availability of all original parts – giving you complete planning confidence.
- Convenient collection service: We make it easy. Simply use our form: we collect your compressor from you or your partner workshop, repair it in our specialist department and return it ready for use – throughout Europe. Request collection
Delivery throughout Europe
We supply more than hardware: customer-focused complete solutions. From personal configuration advice to delivery throughout Europe, we are your partner for high-quality compressed air technology.
Smart timing: maintenance without extra downtime
Maximise your fleet’s efficiency: use planned vehicle downtime or workshop visits for your KOCI compressor service. While your vehicle is being serviced, we restore your unit to peak performance – avoiding a second period of downtime.

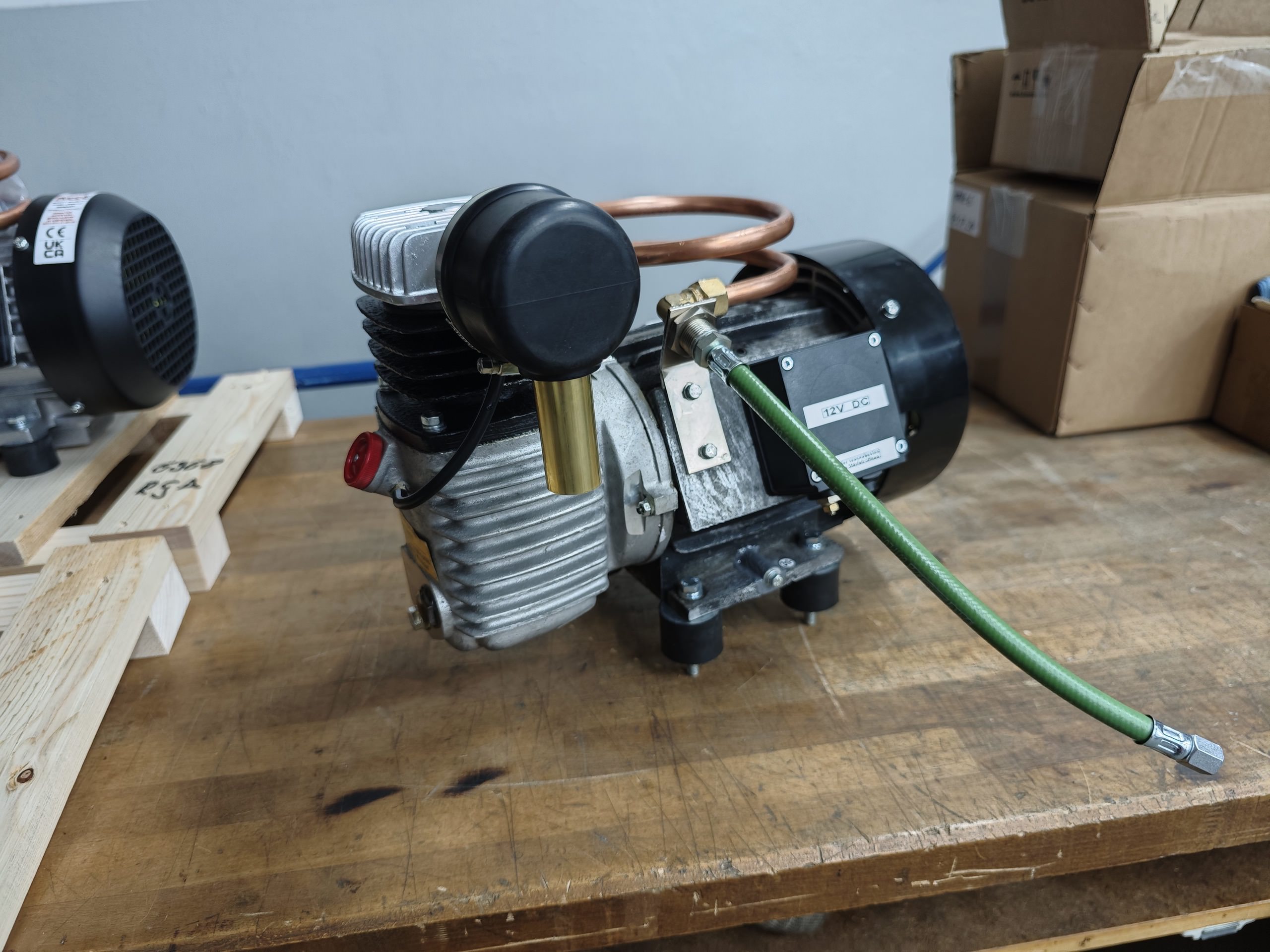

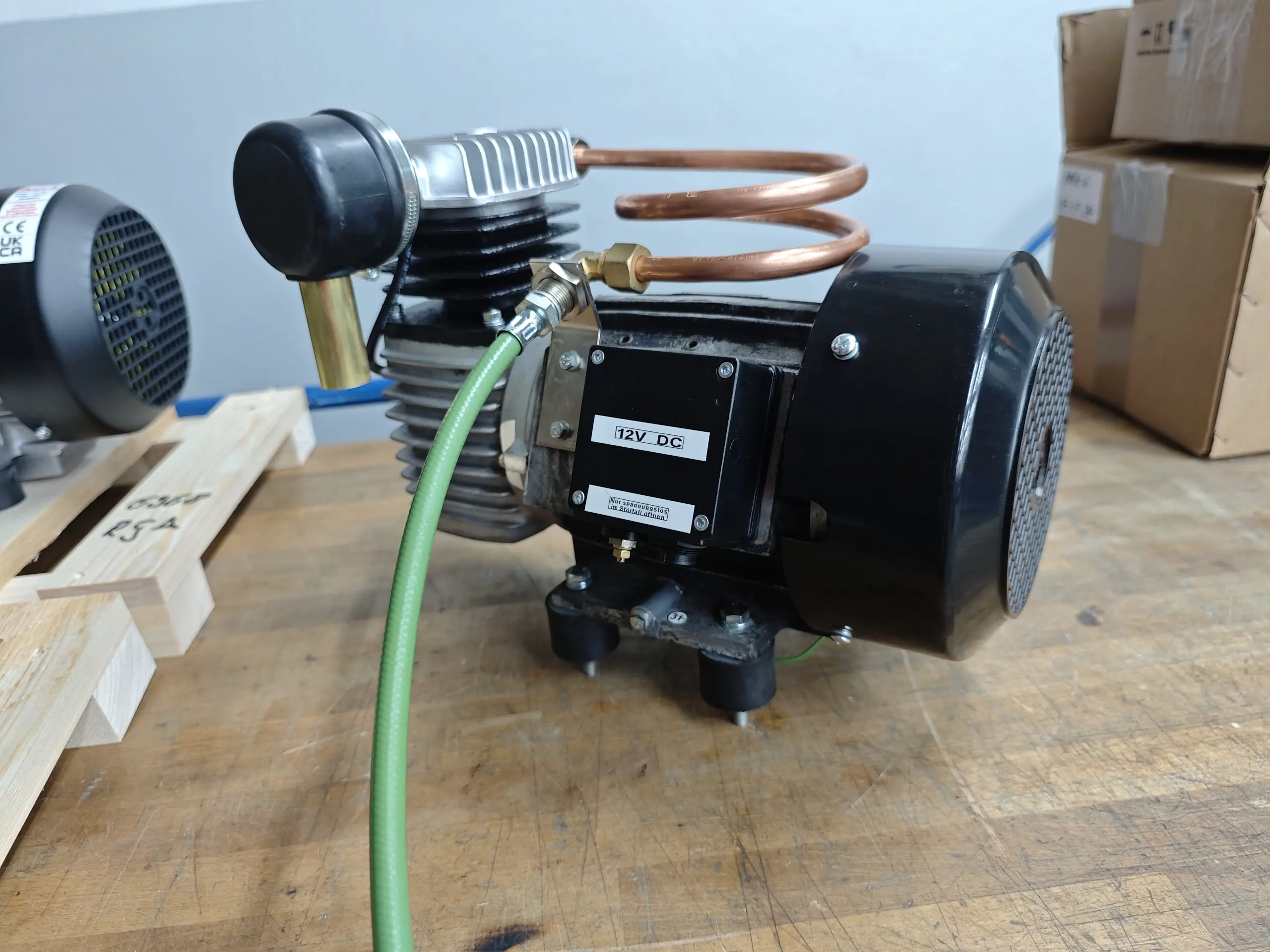

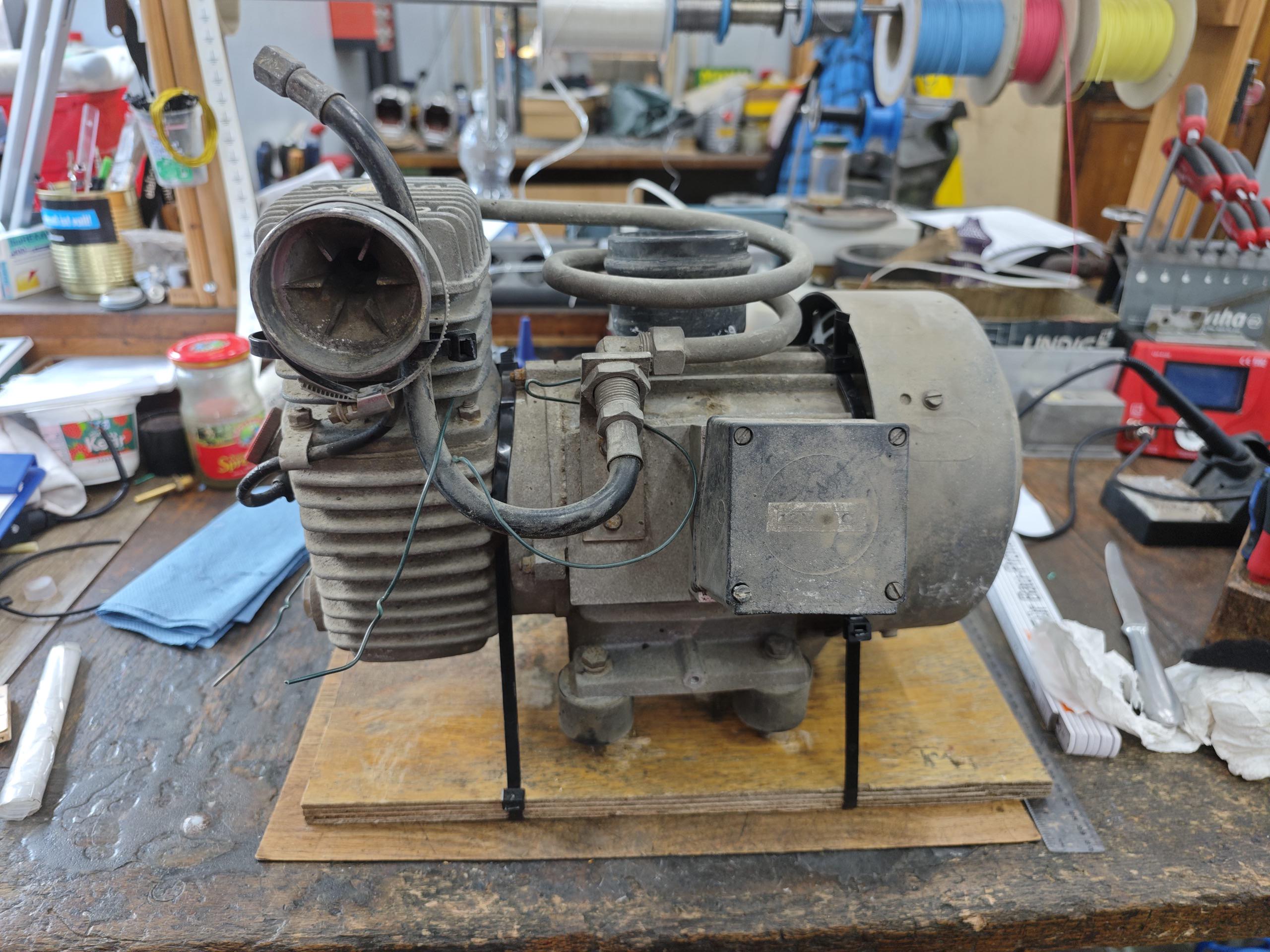

Repairs – before and after
